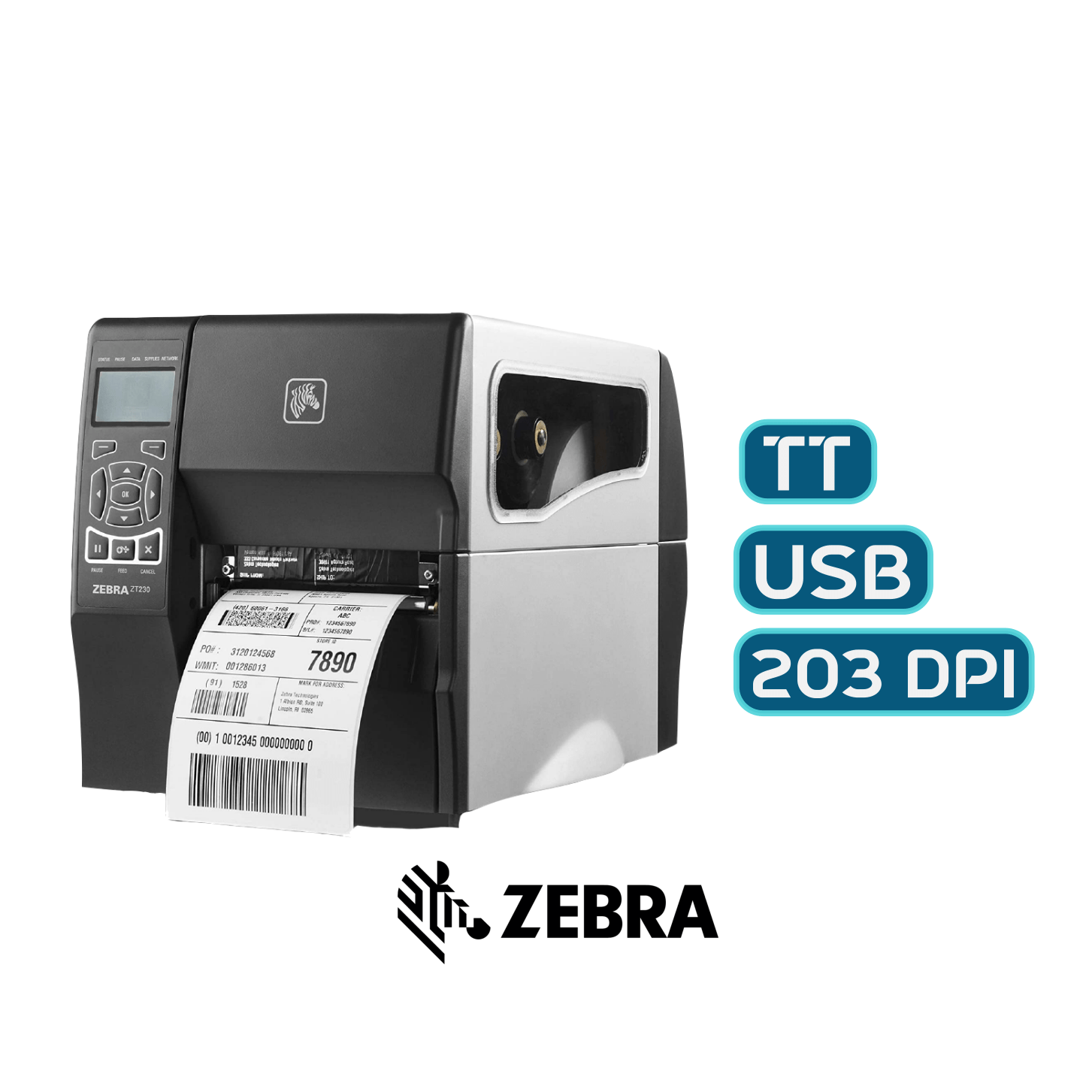

Zebra ZT230 Industrial Printer(203 dpi)USB, Serial | ZT23042-T0E000FZ
Men’s Jacket Size Guide
Zebra ZT230 Industrial Printer Detailed Specification Standard Features Print methods: direct-thermal or thermal transfer (optional) Construction: metal frame with a choice of metal (ZT230) Bi-fold media door with large clear window Side-loading supplies path for simplified media and ribbon loading Thin film printhead with E3â„¢ Element Energyâ„¢ Equalizer for superior print quality Bi-color LEDs for quick printer status Icon-based LCD multilingual graphical user interface and full-function keypad (ZT230) Communications: USB 2.0 and RS-232 Serial ports ENERGY STAR® certified Physical Characteristics Dimension ZT230 closed: 17 in. L x 9.5 in. W x 10.9 in. H 432 mm L x 242 mm W x 277 mm H Weight ZT230 closed: 20 lbs./9.1 kg Printer Specifications Operating System Link-OS® Resolution 203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional) Memory 128 MB SDRAM memory 128 MB on-board linear Flash memory Maximum Print Width 4.09 in./104 mm Maximum Print Speed 6 in./152 mm per second Media Sensors Transmissive and reflective sensors Print Length 203 dpi: 157â€/3988 mm 300 dpi: 73â€/1854 mm Media Characteristics Media Width 0.75 in./19.4 mm to 4.50 in./114 mm Media Roll Size 8.0 in./203 mm O.D. on a 3.0 in./76 mm I.D. core 6.0 in./152 mm O.D. on a 1.0 in./25 mm I.D. core Media Thickness 0.003 in./0.076 mm to 0.010 in./0.25 mm Media Types Continuous, die-cut, notch, black mark Ribbon Characteristics Standard Length ZT230: 1,476 ft./450 m Width 1.57 in./40 mm to 4.33 in./110 mm Core 1.0 in./25.4 mm Barcode Symbologies Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC, and EAN with 2 or 5 digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code 2D Barcodes: Aztec, Codablock, PDF417, Code 49, Data Matrix, MaxiCode, QR Code, MicroPDF417, TLC 39, RSS-14 (and composite)
