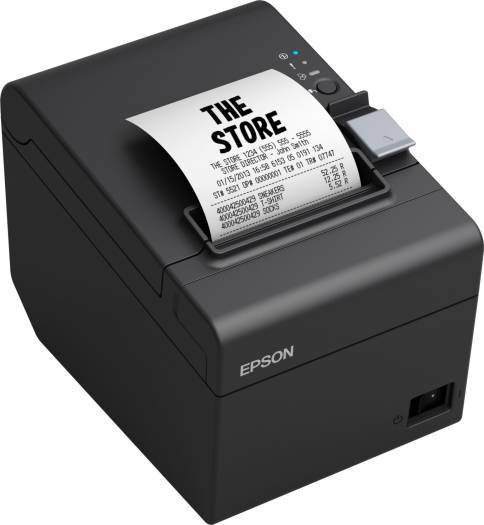

hermal Receipt Printers PRINTER MODEL NAME TM-T20 PRINT METHOD Thermal line printing PRINT FONT Font Character Size (mm) Character Set Character Per Inch Column Capacity (columns) Standard 42 column mode 9 17 / 12 24 0.88 (W) 2.13 (H) / 1.25 (W) 3 (H) 95 Alphanumeric, 18 set International, 128 43 Graphic Bar code : UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN), CODE39, ITF, CODABAR(NW-7), CODE93, CODE128,GS1-128, GS1 DataBar Two-dimensional code : PDF417, QRCode, MaxiCode, 2D GS1 DataBar, Composite Symbology 22.6 cpi / 16.9 CPI Paper width 80 mm : 48 / 64 , Paper width 58 mm : 35 / 46 Paper width 80 mm : 42 / 60 , Paper width 58 mm : 42 / 31 INTERFACES USB, Serial, Ethernet RECEIVE DATE BUFFER 4 KB or 45 bytes PRINT SPEED Max. 150 mm/sec PAPER Dimensions (mm) Roll paper: 79.5 ± 0.5 (W) × dia. 83.0 / 57.5 ± 0.5 (W) × dia. 83.0 POWER 100 – 240V AC, 50 / 60 Hz POWER CONSUMPTION 1.0 A POWER SUPPLY Internal(AC cable included) D.K.D. FUNCTION 2 drives RELIABILITY Printer Mechanism Life Auto cutter life MTBF MCBF 15 million lines 1.5 million cuts 360,000 hours 60,000,000 lines EMC STANDARDS FCC, VCCI, CE marking, AS / NZS CISPR22 class A, GOST-R SAFETY STANDARDS UL / CSA / EN / TÃœV / GOST-R WARRANTY 2 years OPTION Affixing tape, External buzzer unit STANDARD ACCESSORIES Roll paper × 1 roll(for checking the initial movement of the printer), CD-ROM(Drivers, Tool software, User’s manual)*, Power switch cover, Power switch waterproof cover, Wall hanging bracket, Screws for wall hanging bracket, Rubber feet for vertical installation, Switch panel for vertical installation, 58-mm width paper guide plate, Interface cable, AC cable INSTALLATION horizontally / vertically / vertically with wall hanging bracket / Wall hanging OVERALL DIMENSIONS 140mm (W) x 199mm (D) x 146mm (H) WEIGHT 1.7Kg cpi:characters per 25.4 mm(characters per inch) TM-T20 comes with everything needed all in one box *Contents of CD-ROM : Drivers & Tool software(APD, OPOSâ„¢, JavaPOSâ„¢, OPOS NETâ„¢, TM Virtual Port Driver, Linux® Cups driver, Mac OS® X driver, T20 Utility, EpsonNet Simple Viewer), Manuals(User’s manual , T20 Software manual) As an International ENERGY STAR Partner, Epson has determined that this product meets the International ENERGY STAR guidelines for energy efficiency. Epson is the registered trademark of Seiko Epson Corporation. Epson trademarks of Seiko Epson Corporation. All other names and company names used herein are for identification purpose only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. All print samples shown herein are simulations. Specifications are subject to change without notice. Usage Conditions Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability.
