AJA KONA 1-S Short 3G-SDI 2K Capture & Playback Card | KONA 1-S-R0

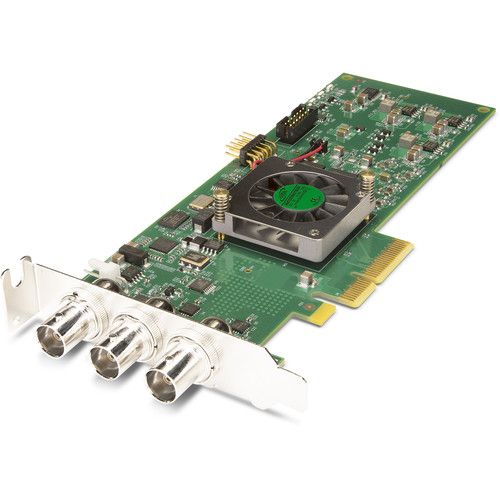

AJA Kona 1 Overview The AJA KONA 1-S is the short, low-profile version of the KONA 1 capture and playback card. It’s designed for OEM developers and allows the user to make an internal connection for an optional, external RS-422 9-pin connector (while the tall version features an integrated 9-pin connector). The card is Mac/Windows/Linux 2-lane PCIe 2.0-compatible and offers single-channel 3G-SDI 2K/HD 60p frame-accurate input/output and a selectable reference/LTC input. It also allows simultaneous monitoring during capture. Key Features Single-channel 3G-SDI 2K/HD 60p capture and playback Short, low-profile version for OEM developers (allows user to make internal connection for external RS-422 9-pin connector) Selectable HD/SD reference/LTC input Simultaneous monitoring during capture Mac/Windows/Linux 2-lane PCIe 2.0 compatible Full-size BNC ports 16-channel SDI embedded audio input/output, 24-bit/48 kHz ANC capture and processing 8-/10-bit YCbCr and RGB frame buffer formats AJA Kona 1 Specs Video Formats 2048 x 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 2048 x 1080PsF at 23.98, 24, 25 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080i at 50, 59.94, 60 1080PsF at 23.98, 24, 25, 29.97, 30 720p at 50, 59.94, 60 625i at 50 525i at 59.94 Video Inputs 1 x 3G-SDI on BNC, SMPTE-259/292/296/424, supports 16-channel 24-bit/48 kHz synchronous embedded audio Output 1 x 3G-SDI on BNC, SMPTE-259/292/296/424, supports 16-channel 24-bit/48 kHz synchronous embedded audio Reference/LTC Input 1 x 3G-SDI on BNC, analog color black or HD tri-level sync, LTC Interface 2-lane PCIe 2.0 Operating Temperature 32 to 104�F / 0 to 40�C Storage Temperature -40 to 140�F / -40 to 60�C Relative Humidity 10-90% non-condensing Operating Altitude < 9850′ / < 3000 m Dimensions 0.75 x 7.25 x 3.1″ / 1.9 x 18.4 x 7.9 cm Weight Approx. 0.3 lb / 135 g Package Weight 0.59 lb Box Dimensions (LxWxH) 9.8 x 6.5 x 3.25″
